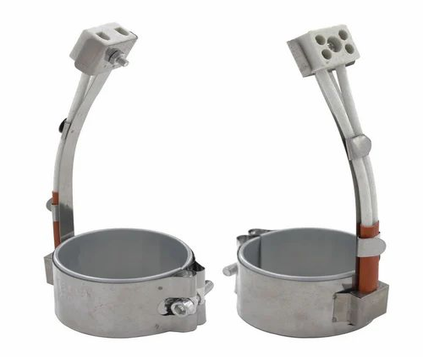

Mica Bend Heater
Mica Bend Heater
Mica Bend Heaters are flexible industrial heaters designed for fast, uniform heating of cylindrical and curved surfaces. Manufactured with high-quality mica insulation and resistance wire, they provide efficient heat transfer, excellent electrical insulation, and reliable performance for various industrial heating applications.
Mica Bend Heater
Mica Bend Heaters offer efficient and economical heating for cylindrical surfaces requiring external indirect heating. They use high-quality mica insulation with resistance wire and are available in various shapes and sizes. The heating element is insulated within a mica core and enclosed in a metal sheath, providing excellent insulation, reliable heat transfer, and long heater life.
Advantages
- Various shape options in mica strip heater.
- Good heater lifetime.
- Low-cost heating solution.
- Reasonably high operating temperature.
- Good heating efficiency.
- Less thickness for compact installation.
Applications
- Plastic Injection, Extrusion and Moulding Processes.
- Oil Lubricating Units.
- Plastic Processing Industry.
- Chemical Industries.
- Food Processing Industries.
- External Tank & Vessel Heating.
- Blown Film Dies.
Technical Specifications
| Parameter | Specification |
|---|---|
| Sheath Material | Stainless Steel, Galvanized Iron |
| Max Sheath Temperature | 450°C |
| Voltage | 120V & 240V, Single Phase; 2 Phase and 3 Phases |
| Watt Density | Up to 30 W/in² |
| Minimum Diameter | 1.2" |
| Minimum Width | 1" |
| Wattage Tolerance | +5%, -10% |
| Resistance Tolerance | +10%, -5% |
Mica Bend Heater

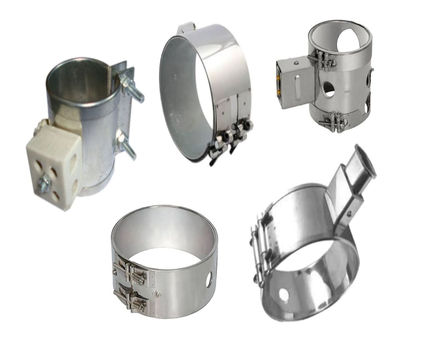

Types of Mica Bend Heater
Mica Bend Heaters deliver efficient, uniform heating for pipes and cylindrical comp
