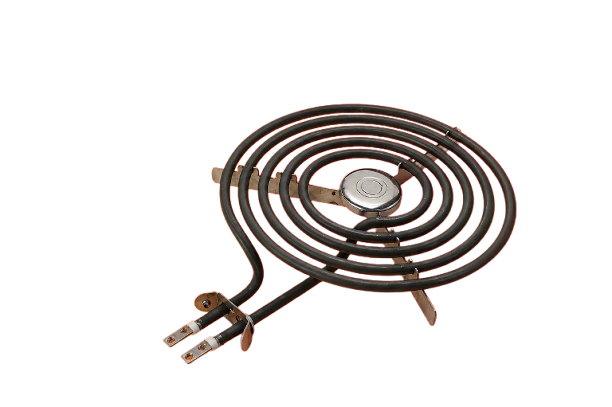

Coil Heaters
Coil Heaters
Coil heaters are an advance concept of thermal engineering, also known as high performance tubular heaters or cable heaters. The basic construction of these heaters consists of compacted MgO, high temperature resistance wire, and Chrome Nickel Steel tube. These heaters can be constructed with or without built in thermocouples.
Advance Concept of Thermal Engineering
High Performance Tubular & Cable Heater Design
High Temperature Resistance Wire & Compacted MgO
Durable Chrome Nickel Steel Outer Tube
Available With or Without Built-In Thermocouples
Multiple Termination Exit Configurations
Coil Heaters
Coil heaters are an advanced concept of thermal engineering, also known as high performance tubular heaters or cable heaters. Constructed with compacted MgO, high-temperature resistance wire, and a Chrome Nickel Steel tube, these heaters can be custom engineered with or without built-in thermocouples.
Key Features & Construction
- Versatile Termination Exits: Available in Tangential, Axial, and Radial exit configurations.
- Built-in Thermocouple Options: Can be integrated with 'J' type (Fe K) or 'K' type (Cr Al) thermocouples (grounded or ungrounded).
- High-Temperature Resistance: Operates at maximum sheath temperatures up to 750°C and adapter temperatures up to 150°C.
- Superior Insulation: Compacted high-purity MgO insulation with NiCr 80:20 heating wire housed inside Chrome Nickel Steel tubing.
- Flexible Power & Voltage: Compatible with a voltage range from 24 to 250 volts with power ratings customized to the application.
Technical Specifications
| Parameter | Specification |
|---|---|
| Sheath Material | Chrome Nickel Steel |
| Insulation Material | High purity MgO |
| Heating Element | NiCr 80:20 |
| Thermocouple | 'J' type (Fe K), 'K' type (Cr Al) grounded or ungrounded |
| Connection Wires | Stranded Nickel wires with PTFE coating |
| Voltage Range | 24 to 250 volts |
| Power Tolerance | ± 10% |
| H. V. Testing | 800 V (Bent heater), 500 V between T/C and heating element |
| Insulation Resistance | > 5 MΩ |
| Current Leakage | < 0.5 mA |
| Sheath Temperature | 750°C max |
| Adapter Temperature | 150°C max |
| Length Tolerance | Heated length ± 2% |
| Unheated Length | 5-10 mm on bottom end, 50 mm at the adapter end (Larger lengths available on request) |
Applications
- Hot Runner Nozzles & Bushings
- Tube Extrusion & Pipe Forming
- Hot Runner Distribution Plates & Small Manifold Heating
- Sealing and Cutting Bars and Jaws for Packaging Machines
- Hot Metal Forming Dies and Punches
- Semiconductor Manufacturing and Wafer Processing
02 . Thermal Engineering
High Performance Coil Heaters
Hover Zoom
Tangential, Axial & Radial Exits
